Techniques - Vibrations

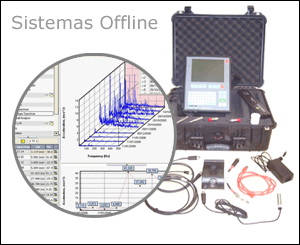

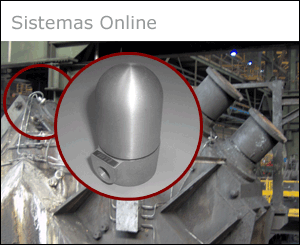

Online and Offline MTI Systems

On-line services have been conceived with last generation technologies in the control of dynamic variables of rotating equipment.  Moreover they provide modularity and application versatility.

ID International offers a fourth generation advanced systems service supported on the technology and expertise of Measurement Technologies Inc.

Within its main characteristic are the continuous monitoring of all signals and the complex analysis of them, what turns it into the sole system in the market: Real Time Management.

In the event of any dynamic variation in the equipment under control, an exhaustive checking of such events is performed, in order to determine the origin of such alteration, with an unsurpassable analysis capability and speed.

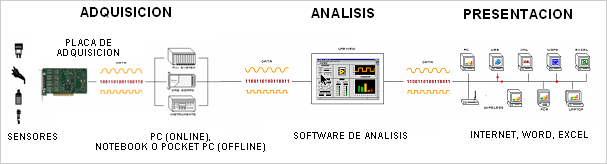

Acquisition

 Connection up to 3072 simultaneous sensors in real time
Connected to any type of sensor (accelerometers, proximity sensors, etc)

High data acquisition speed


Analysis

 Through software

Possibility of different types of analysis for every sensor.

Independent alarms settings


Types of Analysis

 Frequency analysis

Implementation of windows.

Bode y nyquist plots

Envelope analysis

Cepstrum.

Analysis of transients.

Order analysis.

Analysis in low frequency


Presentation

 Visualization of data through graphs, numerical or color indicators, in real time.

Data analysis via the Internet

Generation of automatic reports sent via e-mail.

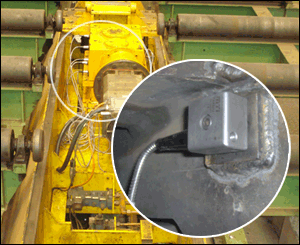

Vibration Analysis

Continuous Application System

Previous engineering on equipment.

Determination of points and variables to be measured for every piece of equipment

Measurement of routines in line with processed controlled by ISO 9001

Analysis of every particular measurement result, and automatic feeding to GAM software data base




PULSE Multi Analyzing Systems

On-line measurement in real time
Simultaneous reading of 100 data channels




Additional Services to the Vibrations Analysis
Controlled greasing of electric motors bearings

All electric motors bearings can be greased through a control by means of special instrumentals in vibration acceleration in order to ensure a correct grease dosage and avoid impairment by excessive or default grease.

Temperature Measurements

On all bearings, rolling and moving parts a temperature control will be performed through contactless infrared devises.
